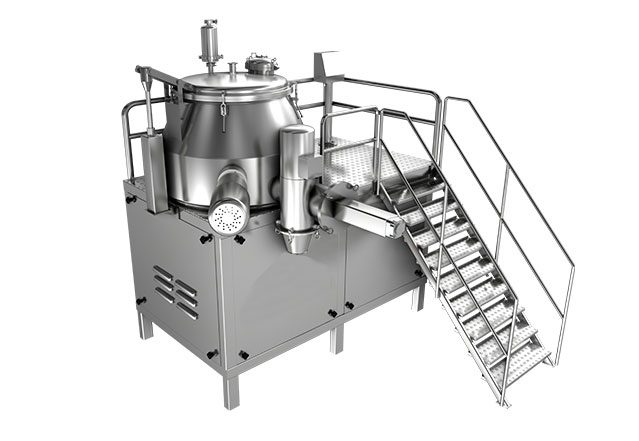

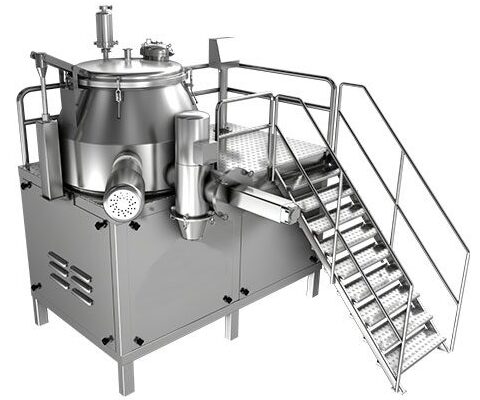

PharmaChem Cosmetics Industriesis a prominent Rapid Mixer Granulator Manufacturer in India, we design and manufacture machines with an SS 304 bowl comprising a plain bottom, cylindrical mid-section, and conical top for efficient mixing. The counterbalanced lid features vents, viewports, and charging ports, ensuring safe and convenient operation. Our strong commitment to quality makes us a preferred choice in the industry.
Leveraging advanced automation and modern manufacturing technology, we are recognized as a leading Rapid Mixer Granulator Supplier in India, consistently setting new benchmarks through innovation and reliability.
Main Impeller & Drive:
The impeller is driven by a dual-speed 750/5000 synchronous TEFC motor, coupled with a worm reduction gearbox. It provides uniform mixing at the center and bottom of the bowl, while a specially designed bearing housing supports in-place washing, prevents leakage, and ensures longer gearbox life.
Chopper:
The chopper operates with a dual-speed TEFC motor (1440/2800 RPM) and a 4-blade stainless steel impeller. Horizontally mounted, it ensures efficient granulation and consistent particle size.
Discharge Port:
The discharge port is mounted parallel to the bowl with a vertical sliding opening operated by a pneumatic cylinder, allowing controlled and smooth discharge.
Mounting:
The machine is mounted on a sturdy MS channel frame housing the drive assembly at the bottom, with the bowl positioned on top. An SS staircase, safety railings, and a partially SS dimpled platform are provided. The area beneath the bowl and the entire body are covered with SS panels for operator safety and hygiene.
Main Panel:
The main control panel is pre-wired and ready for electrical connection, equipped with MCCB and relays. All wiring is clearly numbered for easy identification and maintenance.
Rapid Mixer Granulator Manufacturers and Suppliers in India offer RMGs with dual-speed HP TEFC motors, ensuring high performance and reliability.
Note:
For the RMG 25 lab model, staircase and railing are not provided, as the machine is accessible from ground level, and the entire mounting is SS-covered.0
- The control panel is mounted on a platform and is provided with
- Actuators for ON/OFF, slow, fast operation.
- Auto / manual controls.
- Timer.
- Indicator Lights.
- Ammeter/ voltmeter for both motors.
- Controls for discharge opening/closing.
- Air regulator & Pressure gauge & air filter.
- Optionally a PLC-based control Panel can be Provided.
RAPID MIXER GRANULATOR available in capacities of –
1) 100 KGS RAPID MIXER GRANULATOR
2) 150 KGS RAPID MIXER GRANULATOR
3) 200 KGS RAPID MIXER GRANULATOR
4) 250 KGS RAPID MIXER GRANULATOR
5) 300 KGS RAPID MIXER GRANULATOR
6) 500 KGS RAPID MIXER GRANULATOR
7) 600 KGS RAPID MIXER GRANULATOR
8) 800 KGS RAPID MIXER GRANULATOR
9) 1000 KGS RAPID MIXER GRANULATOR
10) 1200 KGS RAPID MIXER GRANULATOR
11) 1500 KGS RAPID MIXER GRANULATOR
12) 2000 KGS RAPID MIXER GRANULATOR
13) HIGH SPEED GRANULATOR
14) GMP RMG
Salient Features:-
- Locking arrangement for the motor to eliminate accidentally starting with an open lid.
- Enclosed moving parts.
- Locking arrangement for the motor to at low air pressure to eliminate line powder penetrating the shaft seals
SPECIAL FEATURES:-
- Air-purged shaft seals eliminate powder entering the seal.
- Built-in cleaning system for both shaft seals.
- Layouts to suit individual requirements possible.
- Machine can be provided with loading & unloading units to form an assembly line & reduce material handling (Optional feature)Machine can be provided with loading & unloading units to form an assembly line & reduce material handling (Optional feature)
- Fanner taper lock pulley on main drive to reduce vibration and better transmission efficiency.
- Main Bearing Housing provided with 3 nose Oil Seals and sleeve to minimize powder leakages/cross-contamination.
- Chopper motor with built-in S.S. shaft to eliminate roller, and bearings and reduce maintenance.
- The main panel is provided with pressure switch control for the proper functioning of the machine at the desired pressure of air only to prevent powder entry into the impeller and eliminate jamming of impellers.
- The circuit is provided with interlock contactors so that the chopper cannot operate directly, or independently.
- Discharge plunger provided with 3 position solenoid valves to open and close at desired levels, thereby regulating the discharge and preventing discharge of large lumps.
- The pneumatic circuit is provided with a nonreturn valve and water inlet. /Outlet connections to facilitate washing of the main impeller assembly without dismantling, to facilitate faster changeover.
Technical Specifications:-
| MODEL | PCI RMG-10 | PCI RMG-25 | PCI RMG-50 | PCI RMG-100 | PCI RMG-150 | PCI RMG-250 | PCI RMG-400 | PCI RMG-600 | PCI RMG-1000 |
|---|---|---|---|---|---|---|---|---|---|
| Gross Volume in Ltrs | 10 | 25 | 50 | 100 | 150 | 250 | 400 | 600 | 1000 |
| Working Volume in Ltrs | 8 | 20 | 40 | 80 | 120 | 200 | 320 | 480 | 800 |
| Main Motor HP | 2 / 3 | 3 / 5 | 3 / 5 | 7.5 / 10 | 10 / 15 | 20 / 30 | 30 / 40 | 40 / 50 | 63 / 85 |
| RPM Dual Speed | 750 / 1500 | 750 / 1500 | 750 / 1500 | 750 / 1500 | 750 / 1500 | 750 / 1500 | 750 / 1500 | 750 / 1500 | 750 / 1500 |
| Mixing Speed | 75 / 150 | 75 / 150 | 75 / 150 | 75 / 150 | 75 / 150 | 75 / 150 | 75 / 150 | 75 / 150 | 75 / 150 |
| Chopper HP | 1 / 1.5 | 1 / 2 | 2 / 3 | 2 / 3 | 3 / 3 | 3 / 5 | 5 / 7.5 | 5 / 7.5 | 10 / 15 |
| RPM Dual Speed | 1440 / 2880 | 1440 / 2880 | 1440 / 2880 | 1440 / 2880 | 1440 / 2880 | 1440 / 2880 | 1440 / 2880 | 1440 / 2880 | 1440 / 2880 |
| Weight in Kgs | 200 | 900 | 1000 | 1400 | 1500 | 1800 | 2000 | 2500 | 3500 |
| OVER ALL DIMENSIONS ( PHARMACHEM COSMETICS INDUSTRIES ) | |||||||||
| Length | 1450 | 1440 | 1700 | 2350 | 2400 | 2550 | 2880 | 3100 | 3300 |
| Width | 600 | 1000 | 750 | 1100 | 1430 | 2350 | 2450 | 2690 | 3150 |
| Height | 950 | 1310 | 1400 | 1750 | 2185 | 2285 | 2275 | 2520 | 3035 |
| H - 1 | 1060 | 1345 | 1600 | 1900 | 2280 | 2585 | 2960 | 3250 | 3765 |
