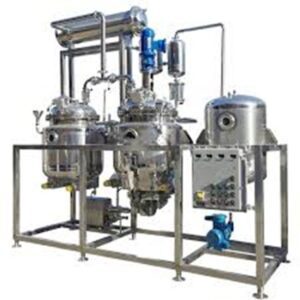

Basket Type of Extraction Equipment
- Application: suitable for production with less quantity or many varieties.
2. The herbs are loaded in the punched hole screen basket and the lifting and loading is done by using crane.
3. The construction is simple and the space requirement is small.
4. The extraction’s temperature is automatically controlled.
5. The cover opening is pneumatic.
6. With the condenser, it can operate in a complete closed condition. (Under normal atmosphere pressure.)
7. With filter system to reduce the sediments.
Features
- The herbs are loaded in the punched hole screen basket and are lifted and loaded by crane.
2. The construction is simple and required a small space.
3. The temperature during operation is controlled automatically.
4. With the condenser, it can operate in a complete contained condition. (Under normal atmosphere)
Specification Sheet
| EXTRACTION EQUIPMENT | REQUIRED SPACE LXWXH | CONCENTRATION EQUIPMENT | REQUIRED SPACE LXWXH |
|---|---|---|---|
| 100L/batch | 2.0M x 2.0M x 3.0M | 30L/batch | 1.0M x 1.0M x 3.0M |
| 1200L/batch | 3.0M x 3.0M x 5.0M | 300L/batch | 4.0M x 2.5M x 3.5M |
| 2500L/batch | 3.5M x 3.5M x 6.0M | 600L/batch | 4.5M x 3.5M x 4.5M |
| 3500L/batch | 4.0M x 4.0M x 7.0M | 1000L/batch | 5.5M x 4.0M x 6.5M |
| 5000L/batch | 5.0M x 5.0M x 9.0M | 1200L/batch | 6.0M x 4.0M x 7.5M |
| 6000L/batch | 6.0M x 6.0M x 10.0M | 1500L/batch | 6.5M x 4.5M x 8.0M |
Remark: The basket type's height can be adjusted. The continuous type and multi-stage type are also available.
