Syrup Manufacturing Plant
- Capacity Up to 50 litres – 10000 Litres batch blenders, Complete Untouched Process
- All wetted Parts are made from SS316/316 L Quality Material, All Pipelines are seamless & internally Electro-Polished, and Sugar Charging is Done Under a Vacuum. All transfers are completed under Vacuum.
- The sugar syrup and manufacturing vessels are provided with limpet coils for heating and cooling and are intended with an internal vacuum to facilitate the transfer of sugar directly from stores to the sugar syrup vessel.
- The entry of all propeller agitators is from the bottom, through an especially planned mechanical seal.
- Organization Qualification Documents like DQ, FAT, IQ & OQ Protocols
- PLC-based Mechanization System as per 21 CFR Part 11 (Optional)
- The benefits of the bottom propeller agitator over conventional agitators are that it contains no vibrations in the shaft and no coupling in the drive assembly, leading to lower maintenance costs.
- Inline filters to confirm filtration. Inline Homogenizer is provided for production suspensions, with recirculation
- Transfer Pumps are provided to transfer ready products to the filling line.
- Load cell for accurate weighing
- FLP System can be provided (Optional)
APPLICATION:-
- Cough Syrups
- Oral Drops
- Expectorants
- Antacid Suspensions
Liquid Oral Manufacturing Plant available in range of –
- 500 LITRES LIQUID ORAL MANUFACTURING PLANT
- 1000 LITRES LIQUID ORAL MANUFACTURING PLANT
- 1500 LITRES LIQUID ORAL MANUFACTURING PLANT
- 2000 LTRS LIQUID ORAL MANUFACTURING PLANT
- 2500 LITRES LIQUID ORAL MANUFACTURING PLANT
- 3000 LTRS LIQUID ORAL MANUFACTURING PLANT
- 5000 LITRES LIQUID ORAL MANUFACTURING PLANT
- 10000 LITRES LIQUID ORAL MANUFACTURING PLANT
- LIQUID MANUFACTURING PLANT
- SUGAR SYRUP MANUFACTURING PLANT
- SYRUP MANUFACTURING PLANT
- PREPARATION VESSEL
The Facility Consists of:-
- Side vessel (Premix)
- Online side vessel prefilter
- Manufacturing storage vessels & vessel
- Vacuum transfer system
- Control panel
- Transfer pumps
| MODELS | Working Capacity (Ltr) | Gross Capacity (Ltr) | Homogenizer Propeller | Overall Height (mm) | Overall Width (mm) | |
|---|---|---|---|---|---|---|
| (Rpm) | (Kw) | |||||
| PCI-LMP-50 | 50 | 60 | 50-960 | 1 | 950 | 650 |
| PCI-LMP-100 | 100 | 120 | 50-960 | 1 | 1050 | 700 |
| PCI-LMP-200 | 200 | 240 | 50-960 | 1 | 1350 | 850 |
| PCI-LMP-500 | 500 | 600 | 50-960 | 5 | 1850 | 1050 |
| PCI-LMP-750 | 750 | 900 | 50-960 | 5 | 2200 | 1200 |
| PCI-LMP-1000 | 1000 | 1200 | 50-960 | 5 | 2450 | 1350 |
| PCI-LMP-2000 | 2000 | 2400 | 50-960 | 10 | 2950 | 1650 |
| PCI-LMP-5000 | 5000 | 6000 | 50-960 | 15 | 3950 | 1900 |
| PCI-LMP-10000 | 10000 | 12000 | 50-960 | 30 | 4350 | 2550 |
A Syrup Manufacturing Plant is a complete processing system used to manufacture pharmaceutical syrups, oral liquids, cough syrups, sugar syrups, and medicated liquid formulations with precise mixing, heating, filtration, and storage facilities.
A Sugar Syrup Manufacturing Vessel is used to dissolve sugar in purified water and prepare homogeneous sugar syrup for pharmaceutical, food, beverage, and confectionery applications.
A Syrup Manufacturing Plant is used for manufacturing cough syrups, pediatric syrups, antacid syrups, herbal syrups, vitamin syrups, oral liquid medicines, flavored syrups, and sugar-based formulations.

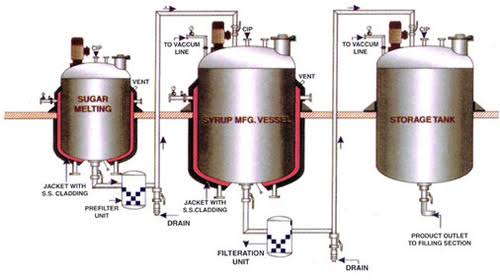

The plant generally consists of a sugar syrup vessel, manufacturing vessel, storage tank, transfer pump, filtration system, control panel, and piping system for efficient production.
We manufacture Syrup Manufacturing Plants ranging from 50 liters to 10,000 liters and offer customized capacities according to customer requirements.
Yes, our Syrup Manufacturing Plants are designed according to GMP and cGMP guidelines with hygienic construction, SS316 contact parts, and easy cleaning features.
Our Sugar Syrup Manufacturing Vessels are manufactured using high-quality SS304 and SS316L stainless steel for excellent corrosion resistance and pharmaceutical-grade performance.
Our Syrup Manufacturing Plants are widely used in pharmaceutical, nutraceutical, ayurvedic, herbal, food processing, beverage, and chemical industries.
Yes, we offer customized Syrup Manufacturing Plants and Sugar Syrup Manufacturing Vessels based on production capacity, automation requirements, and specific process applications.
Stainless steel vessels provide hygienic processing, easy cleaning, corrosion resistance, longer equipment life, and compliance with pharmaceutical manufacturing standards.
Yes, we manufacture and export Syrup Manufacturing Plants and Sugar Syrup Manufacturing Vessels to customers across India and international markets with complete technical support.
We supply Syrup Manufacturing Plants across Ahmedabad, Mumbai, Hyderabad, Bengaluru, Chennai, Pune, Vadodara, Ankleshwar, Baddi, and other pharmaceutical manufacturing hubs in India.
The ideal plant depends on production capacity, syrup formulation, level of automation, future expansion plans, and regulatory requirements. Our experts help customers select the best solution.
PharmaChem Cosmetics Industries is a trusted Syrup Manufacturing Plant and Sugar Syrup Manufacturing Vessel manufacturer in India offering GMP-compliant equipment, customized solutions, premium-quality stainless steel construction, competitive pricing, and reliable after-sales support.
